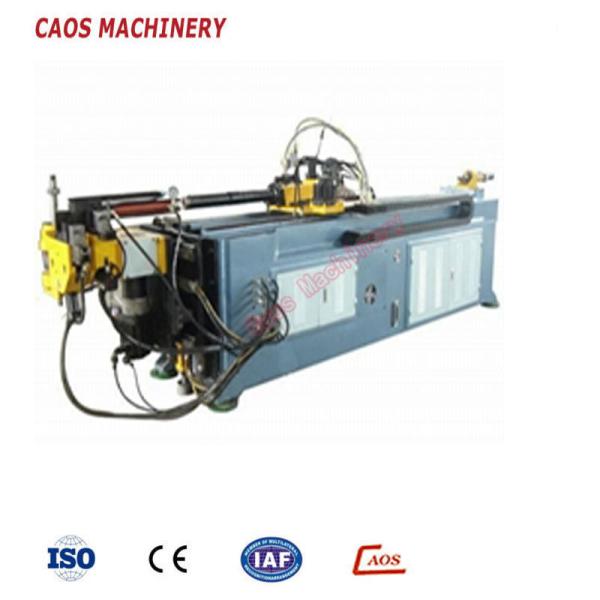

Clamping Feeding 200mm 38CNC Pipe Bending Machine

    Buy cheap Clamping Feeding 200mm 38CNC Pipe Bending Machine from wholesalers

    Buy cheap Clamping Feeding 200mm 38CNC Pipe Bending Machine from wholesalers
    • Buy cheap Clamping Feeding 200mm 38CNC Pipe Bending Machine from wholesalers

    Clamping Feeding 200mm 38CNC Pipe Bending Machine

    Ask Lasest Price
    Supply Ability : 100
    Payment Terms : 30% tt in advance 70% blance shipped out
    Delivery Time : 30days
    Brand Name : CAOS
    Price : Negotiation
    Certification : ISO 9001:2008, CE
    • Product Details
    • Company Profile

    Clamping Feeding 200mm 38CNC Pipe Bending Machine

    Big Model Full Automatic Three Dimensional Pipe Tube Bending Machine Pipe Folder

    Automatic recognition of power in machine and work piece, the processing is both quick and good
    Slow returning core, boosted by barrow, imporving the apprearance of the angle.
    The whole operation is in the computer, simple, quick and correct
    Picturized programming system: draw and modify on the stereo pipe image on the screen, makes the operation simple, quick and correct
    Rebound test: comparison test on the features of lots of pipe materials
    Single-step debugging function- a careful observe on the deformation of the pipe material during the trail manufacture of dies.
    Automatic drawing of the graphics of dies-clear help to develop new products
    Over-all inspection: hydraulic/electrical circuit/ driving systems, adsence of phase in motors/inversion, voltage, temperature, oil pressure, and automatically diagnose the troubles
    passwords, keys, working hours/ recordings of quantities, are applied to management of production.


    Specification/Model
    1. SB50CNC
    Remark
    Max bending capabilityΦ50mm×3mm
    1. The Minimum bending diameter of CNC bending machine based on the pipe diameter
    2.The Max bending diameter of CNC bending machine can accordingto the customers requirement
    3.The Max length of mandrel of CNC bending machine can according to customers requirement

    Max bending radius
    R250mm
    Min bending radiusR20mm
    Max bending angle190°
    Max feeding length2600mm
    feeding methoddirect feeding
    clamping feeding
    Working speedBending speedMax 85°/s
    Rotary speedMax 200°/s
    Feeding speedMax 1000mm/s
    Working accuracyBending accuracy±0.1°
    Rotary accuracy±0.1°
    Feeding accuracy±0.1mm
    Information inputting method1. axisX . Y. Z
    2.working valueY. B. C
    Bending method1.Servo bending : 1kw(more than 3 axis
    2. Hydraulic bending
    Power of rotary servo motor750w
    Power of feeding servo motor1kw
    Max bending groups1. 12
    2. 33
    Max storing components1. 330
    2. 125
    Motor power7.5kw
    Oil pressure12 Mpa
    Size4900 x 1300 x 1300mm
    Weight2500kg
